OMRON Control Components

S8VK-S

A perfect fit for small control panels.

• Operation possible at ambient temperatures from –40 to 70°C
• DC input supported (90 to 350 VDC)
• Power boost function at 120%
• Horizontal side-by-side mounting
• Vibration resistance to 5G, and 300-VAC abnormal input voltage supported for 1 second
• PCB coating protects against dust, corrosive gas and humidity
• Certification for 3000m altitude
• RoHS compliant

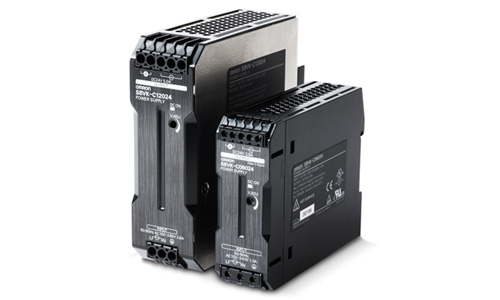

S8VK-C

The S8VK-C Lite family is an ideal choice for cost-sensitive applications that require a dependable high-quality power supply. The family is available with power ratings from 60 W to 480 W.

• Operating temperature range of -25º to +60ºC
• Double set of DC output terminals (three for the negative) provide easy wiring
• Universal input capability, 100 to 240 VAC and 90 to 350 VDC
• Conforms to EN61204-3, EN55011 Class A
• Improved DIN-rail mounting clip provides a better resistance to vibrations and allows easy installation (using one hand to mount in a flash)

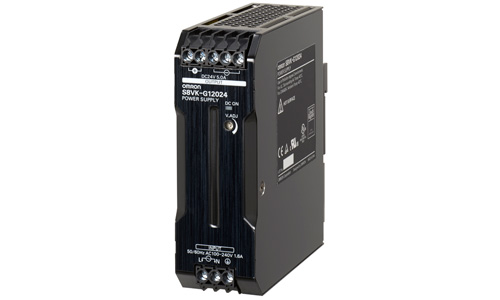

S8VK-G

The S8VK-G offers a wide product range (from 15W up to 480W), in a very compact size. It is 13% smaller than comparable power supplies and the smallest on the market of its type.

• Wide operating temperature range (-40 to +70ºC) to guarantee operation stability
• Double set of DC output terminals (three for the negative) to provide easy wiring
• High efficiency (90%) to reduce energy consumption
• Power Boost functionality (120%)
• Improved DIN-rail mounting clip to provide better vibration resistance and allow for easy installation

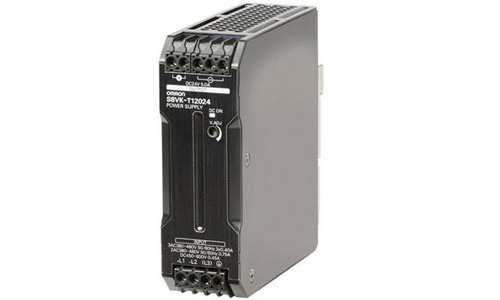

S8VK-T

The 3 phase S8VK-T series adds to the compact Power Supply range (from 120W up to 960W), giving you the best footprint size. Just like the single phase type S8VK-G. It has the wide acceptable input range including 3-Phase input (3 x 340 to 576 VAC) 2-Phase input (2 X 340 to 576 VAC) and DC input excluding 960W (450 to 810 VDC).

• Wide operating temperature range (-40 to +70ºC) to guarantee operation stability
• Double set of DC output terminals (three for the negative) to provide easy wiring
• High efficiency (90%) to reduce energy consumption
• Power Boost functionality (120%)
• High vibration resistance with Metal DIN-rail mounting clip.

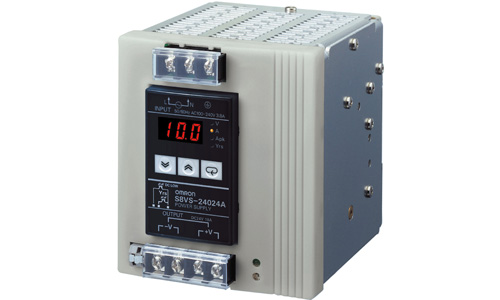

S8VS-A/B

The S8VS-A/B series are AC to DC Power supplies with a display of output voltage, output current, and peak hold current. The A type S8VS has a function to show the maintenance forecast time in operational years. This will contribute to the equipment maintence and allow for replacement before the end of product life. The B type has a function of total run time monitor to allow the user to properly schedule equipment maintenance.

• Operating temperature range (-10 to +60ºC)
• The 3 digit, 7 segment display
• The alarm output(Transistor:PNP, NPN)
• The screwless terminal type is available
• cULus, EN, RoHS compliant
• UL Class 2 output( 60W and 90W)

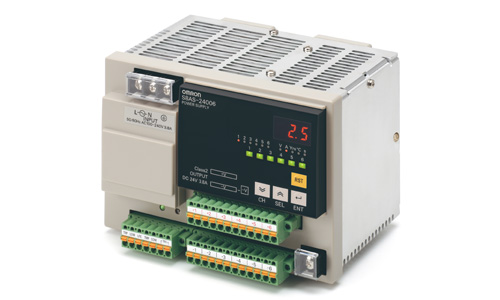

S8AS

The S8AS series are smart power supplies with digital circuit protectors in a single package. The output is divided to 6 or 8 channels and provides adjustable tripping current range for each channel at 0.1 A increments. It can save installation space in panel with less-wiring by the integration of the circuit protector functions.

• Operating temperature range (-10 to +60ºC)
• The 3 digit, 7 segment display
• Signal outputs for Tripping function and the alrams
• Maintenance forcast
• Start-up & Shut down sequence
• External tripping input
• Comunication terminal, RS-485
• cULus, EN, RoHS compliant
• UL Class 2 output

S8JX-G

The S8JX-G is the cost effective power supply delivering Omron quality and reliability. The range of this Power Supply covers up to 600 W, the output voltages are 5, 12, 15, 24 or 48VDC. The low profile and multiple mounting options help you reduce panel space. With a minimum life expectancy of 10 years and protection against over-voltage, over-current and short circuiting, the S8JX-G is as reliable as you may expect from Omron.

• Wide range in DC-output voltage (5V, 12V, 15V, 24V & 48V) & wattage (15 to 600W)
• LED indication power ON
• Over-voltage, over-current, and short circuit protection
• All models can be DIN-rail mounted
• Approvals: UL, cUL, UL508 Listed, VDE
• RoHs compliant

S8VS-A/B

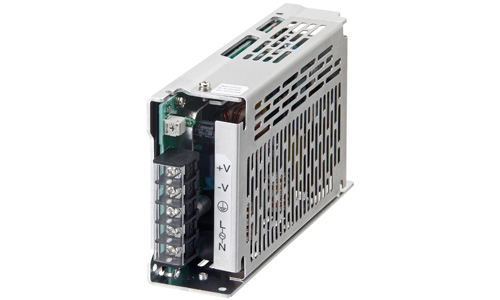

The main improvements provided by the S8JX-P models are Harmonic current suppression/PFC (Power Factor Correction) and EMI EN55011 Class B compliant. In addition, further functionalities have been implemented (applies only to 300 and 600w models):

• Remote Sensing, to compensate for voltage drops on the load lines.
• Remote Control, using an external signal allows to turn the output ON and OFF without removing the input voltage.
• Alarm Output, informing about PS errors, such as fan failure or insufficient voltage.

The S8JX-P family is available for 5, 12, 24 and 48VDC output voltages (15VDC is also available for S8JX-G 15W and 35W). The range of power ratings covers 50W, 100W, 150W, 300W and 600W with all the output voltages available through the whole range.

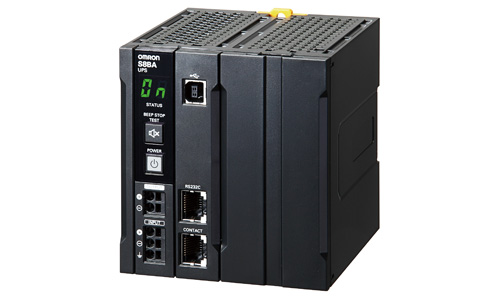

S8BA

The S8BA is a compact DC-DC UPS solution with DIN rail mounting. During power failure or voltage drop, it provides reliability best suited for controllers and industrial-purpose computers (IPC).

• Lithium-ion battery makes it virtually maintenance free (10 year life expectancy)
• Maximum backup time can be programmed via the front of the unit
• Improves system reliability--provides 24VDC back-up power to IPCs in the event of a voltage drop or power failure
• Labor saving push-in termination (input and output) allows for quick and easy installation
• USB cable allows easy connection to PLC’s and IPC’s
• Seven-segment display indicates S8BA status
• UL Certified and CSA approved
