Collaborative Robots

A collaborative robot or "cobot" is a robot designed to work in a shared workspace with humans. We offer a complete range or collaborative robot arms from Universal Robots along with grippers, vision systems and additional accessories needed to implement cobots into your new or existing manufacturing processes.

universal robots

Collaborative Robot Arms

Cost-effective, flexible, safe, and easy-to-use collaborative robots (cobots) are just the ticket to give your business greater control. You don’t have to worry about a cobot calling in sick or quitting without notice, getting bored or injured, or taking too long to learn a new process.

Universal Robots' three different collaborative robots are easily integrated into existing production environments. With six articulation points, and a wide scope of flexibility, the collaborative robot arms are designed to mimic the range of motion of a human arm.

UR3e ROBOT ARM

  • Reach: 500mm / 19.7 ins
  • Payload: 3 kg / 6.6 lbs
  • Weight: 11.2 kg / 24.7 lbs
  • Footprint: 128 mm / 4.6 ins
  • Axis: 6 axis
  • IP class: IP54

UR5e ROBOT ARM

  • Radius: 850mm / 33.5 ins
  • Payload: 5 kg / 11 lbs
  • Weight: 20.6 kg / 45.4 lbs
  • Footprint: 149 mm / 5.9 ins
  • Axis: 6 axis
  • IP class: IP54

UR10e ROBOT ARM

  • Radius: 1300mm / 51.2 ins
  • Payload: 10 kg / 22 lbs
  • Weight: 33.5 kg / 73.9 lbs
  • Footprint: 190 mm / 7.5 ins
  • Axis: 6 axis
  • IP class: IP54

UR16e ROBOT ARM

  • Radius: 900mm / 35.4 ins
  • Payload: 16 kg / 35.3 lbs
  • Weight: 33.1 kg / 73 lbs
  • Footprint: 190 mm / 7.5 ins
  • Axis: 6 axis
  • IP class: IP54
PPE Personal Protective Equipment

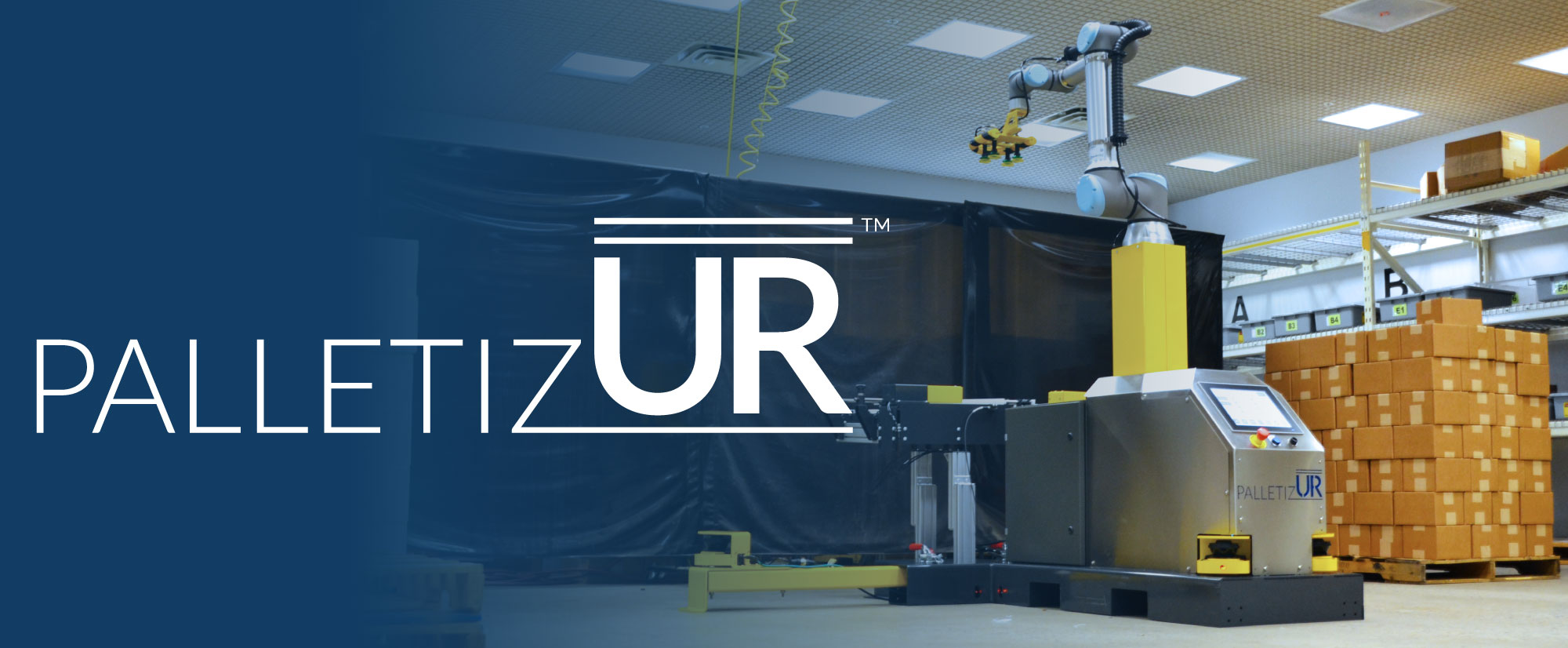

PalletizUR™ Palletizing Robot

The PalletizUR™ is a flexible palletizing system that provides end-users the features needed to quickly setup a robot for packing and palletizing boxes or other standardized products for final shipment.

Features

  • Portable - easily moved with pallet jack or fork lift
  • Minimal integration - plug & play system that is ready in minutes
  • Custom end-effectors - easily adjusted as case size changes
  • Software - drag and drop pallet configuration
  • Continuous operation - 2 pallet reach for continuous production
  • Auto-height adjustment - adjusts to pallet height specifications

Safety

The PalletizUR™ does not require any caging or guarding to run at collaborative speed. If the case rate requires speeds above collaborative speed additional safety equipment is available.

*RECOMMENDED: A safety risk assessment performed by end-user

Adaptive robot grippers

Robotiq Grippers

Robotiq's Adaptive Grippers can accomplish many different tasks with a fast time-to-production.

  • Made for collaborative robots
  • Plug + Play & easy to program
  • High payload & wide stroke options

The 2-Finger Adaptive Gripper offers Plug + Play integration with all Universal Robots models. Using the embedded URCap software for Universal Robots, you have full control over the Gripper, without writing a line of code.

Robotiq 2 Finger Gripper

force torque sensors

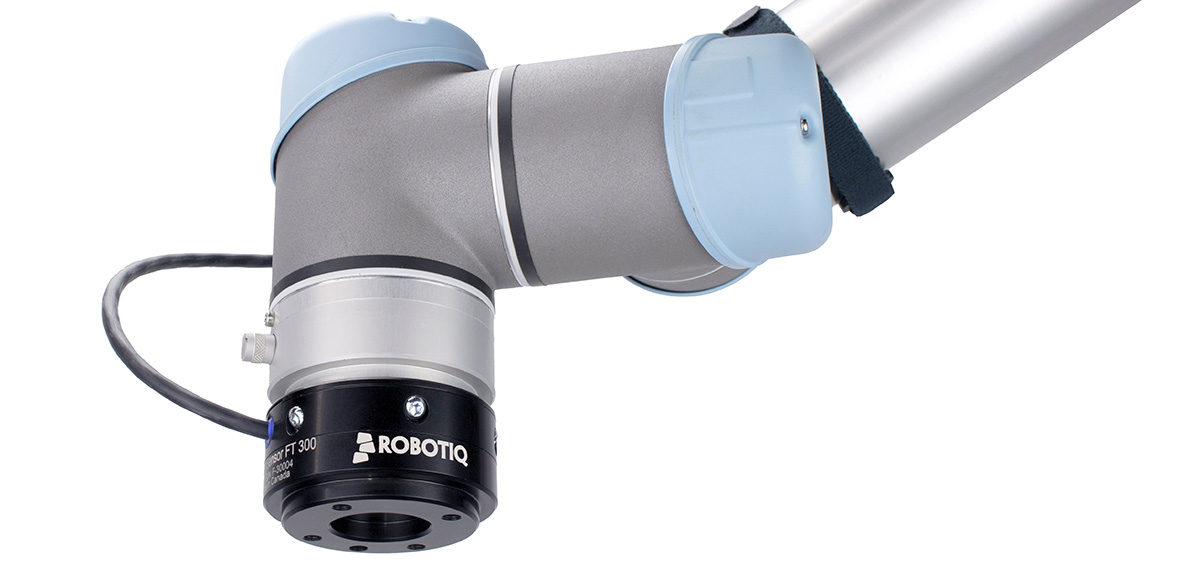

Robotiq FT-300

Robotiq’s Force Torque Sensor (FT300) enables you to automate force sensitive tasks. With our Path Recording UR+, you can program complex robot movements in seconds, without having to set any waypoint.

Features

  • Automate force sensitive tasks
  • Reliably perform precision part insertion, assembly and fabrication, product testing
  • Made for Universal Robots
  • Quick installation
  • Path recording with Force Torque Sensor URCap
  • Increase direct teaching precision with ActiveDrive toolbar
Robotiq UR Wrist Camera

Vision Systems

On Wrist Vision System

Robotiq's Wrist Camera brings Plug + Play vision for Universal Robots in your factory. With a 30-minute setup time, it locates objects on a work surface, without any coding required.

Applications

  • Machine tending
  • Assembly
  • Pick & place

Robotiq’s Wrist Camera is the simple, easy-to-use, part location option that works exclusively with Universal Robots. With the Wrist Camera, you eliminate the need for expensive, custom fixtures to present your parts.

Robotic Bin Picking

Pick-it 3D is a simple vision system does not require extensive training and can be operated by non-vision experts.

  • A fixed price without surprises
  • Configuration and set-up can be done by the operator
  • No need for expensive vision consulting and programming
  • Integration with the robot is solved for you!

Pick-it is a plug and play product that is ready-to-use out of the box. The 3D camera and Pick-it software detect the 3D position, orientation and dimensions.

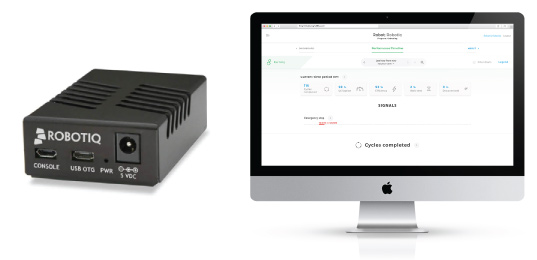

Analytics for Universal Robots

Robotiq Insights sends you a text message when your robot is down and provides real-time data about cycles completed, efficiency, wait-time, and overall utilization for each of your robot.

Features

  • Monitor robot in real-time
  • Measure robot performance over time from years to minutes
  • Access to your robot data anytime, anywhere
  • Diagnose work cell with digital i/o states and external sensor readout
  • Get Operational KPIs: Cycles Completed, Utilization, Efficiency, Wait-time, Disconnected time
  • Receive periodic email reports to subscribers
  • Receive Alerts via SMS on exceptions or when the robot needs attention
Insights

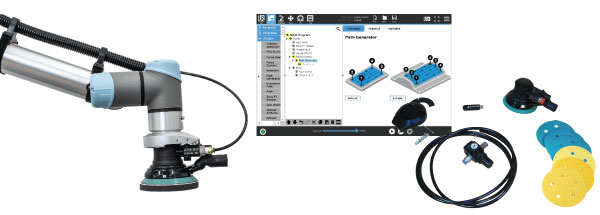

Sanding Kit for Collaborative Robots

Sanding applications for collaborative robots require many hardware and software components to communicate together. Integration can take months… but not anymore! The Robotiq sanding kit is the only hardware and software all-in-one solution for cobots.

Robotiq Sanding Kit
  • Reduce programming time from hours to minutes
  • Automate sanding tasks the easy way
  • The only hardware and software sanding solution for Universal Robots
  • Increase quality and productivity
  • Reduce worker injuries

Vacuum Grippers

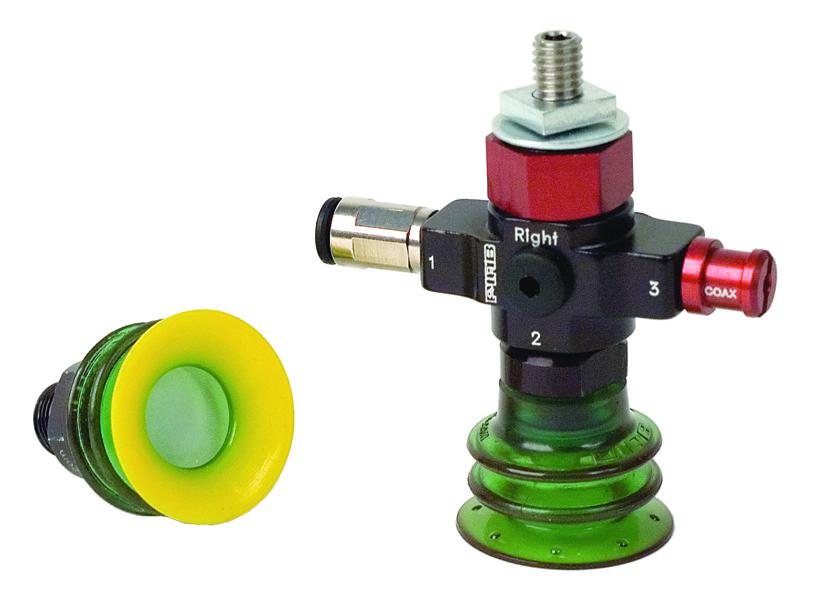

Piab VGS - Vacuum Gripper System

Piab’s decentralized Vacuum Gripper system, VGS, is a product solution integrating high quality suction cups with COAX cartridges.

  • VGS makes selection, sizing and installation of a vacuum system much easier. Design and dimension mistakes for the vacuum system will be avoided.
  • You will enjoy the benefits of a more efficient and reliable vacuum system.
  • Increased machine speeds can be achieved thanks to faster response times with the vacuum source right at the cup and better initial vacuum flow which will grip the object faster.
  • The decentralized approach provides safety with one vacuum source per suction point and it also eliminates flow losses in long vacuum hoses, making maximum use of energy.
Cup selection
kenos

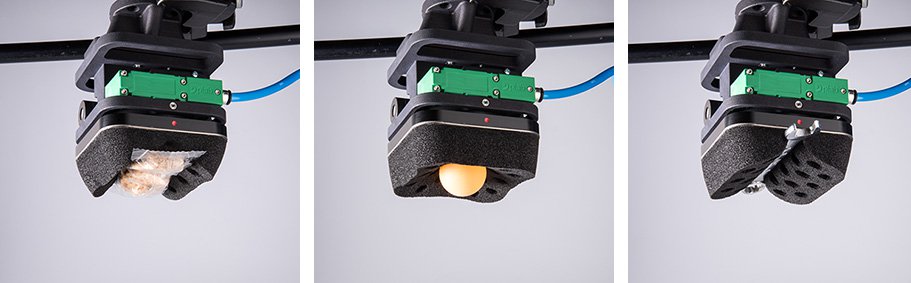

Kenos KCS gripper - your flexible cobot friend

Small, powerful and flexible, Kenos® KCS vacuum gripper helps you handle anything, anywhere.

Piab's Kenos KCS gripper enables a collaborative robot (cobot) that can handle just about anything, anywhere, at any time. This makes it the ideal ”co-working” tool, especially for small businesses, where flexibility is essential. Originally developed together with a leading cobot manufacturer as a tailor-made automation tool for one customer, the resulting vacuum gripper cobot proved so successful that Piab decided to offer it more widely.

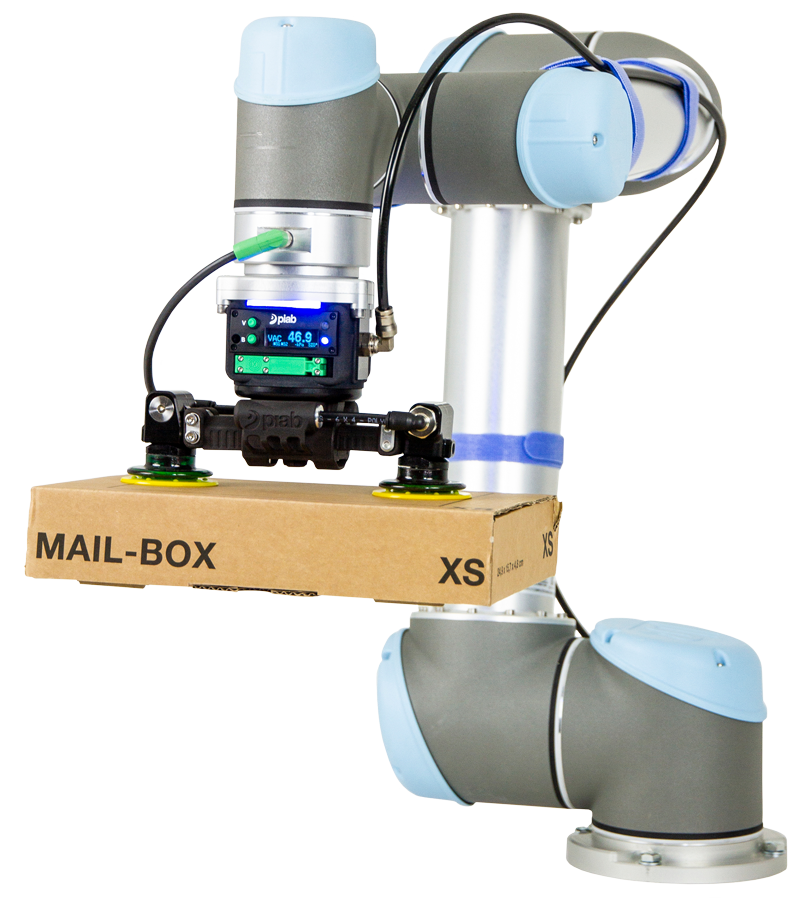

piCOBOT - End-of-arm vacuum tool

Piab is proud to introduce piCOBOT®, a cleverly equipped end-of-arm (EOAT) vacuum tool designed specifically for the cobot market.

Featuring Piab's signature vacuum technology, enabling improved efficiency, productivity and working environments, piCOBOT® offers industry certified plug-and-play extensions to the latest collaborative robots, so called cobots.

Automate the kitting process

The gripper is adjustable, together with piSAVE sense – an object sensing valve – the flexibility for kitting process is very big. piCOBOT can pick, one or two items in the same pick, with different shapes or structures.

picobot

Robotiq Vacuum Grippers

Robotiq Vacuum Grippers can handle a wide range of applications and are ideal for picking up uneven and even workpieces made of different materials, such as cardboard, glass, sheet metal (dry) and plastic.

Airpick

  • Powerful vacuum flow
  • Compact design for cobots
  • Low noise

Epick

  • Connected to the cobot wrist
  • No air supply
  • Easy to handle
Robotiq Vacuum Grippers

Custom Robotic Workstations

Vention is the first digital manufacturing platform dedicated to Machine Design. Vention provides a fully-integrated 3D MachineBuilder and modular component library that let users design, order, and assemble custom industrial equipment directly from a web browser in just a few days.

Industrial Equipment

Vention provides a single environment to design, order and assemble industrial equipment, specifically for Universal Robots. Our team of engineers can assist you in building and selecting the correct equipment for your application.

Example Applications

  • Simple Guarding
  • Robot Pedestal
  • Mobile Carts
  • Telescopic Robot Stand
  • Dual Arm Workstation
  • Single Arm Workstation

Vention keeps all components in stock. In many cases finalized designs are shipped within 24 hours and received the following day.
