Carson MFG Inc.

Carson MFG offers a line of precision planetary gearheads with the option of inline or right angle.

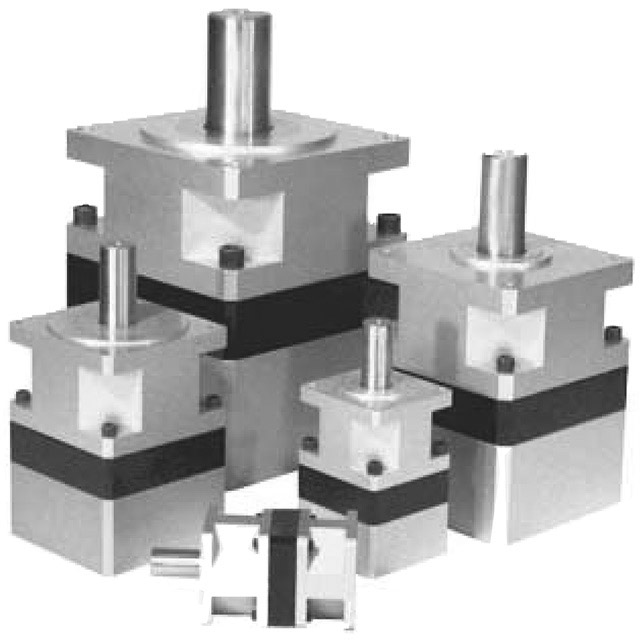

Precision Series Planetary Gearheads

The Precision Series (PL) is Carson's high-end line of planetary gearheads designed for the most strenuous applications. Made in sizes 17, 23, 34, 42 and 56 with standard ratios from 3:1 to 100:1. We are capable of producing ratios up to 10,000:1.

  • Dynamic radial shaft seal at the input and output
  • Enclosure rating: IP65
  • Operating temperature range: -20°F to 250°F
  • Aluminum hard anodized rear & front brackets with a surface hardness of 60 rockwell
  • Alloy steel powder coated ring gear
  • Quality sealed radial ball bearings
  • Stainless steel output shaft
  • Hardened precision gearing throughout
  • Precision clamp on pinion with four clamping screws to eliminate slippage
precision series gearheads

CMI product catalog

For a detailed breakdown of all Carson MFG Inc. gearheads and gearmotors download the complete product catalog.

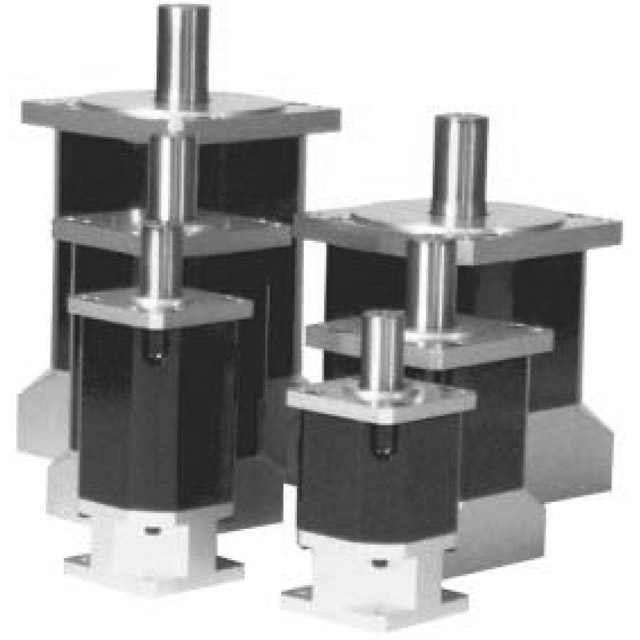

Eliminator Series Planetary Gearheads

The Eliminator Series (EP) is Carson's economical high-end line of planetary gearheads designed for strenuous applications. Made in sizes 17, 23 & 34 with standard ratios from 3:1 to 100:1. We are capable of producing ratios up to 10,000:1.

  • Dynamic radial shaft seal at the input and output
  • Enclosure rating: IP65
  • Operating temperature range: -20°F to 250°F
  • Aluminum hard anodized rear & front brackets with a surface hardness of 60 rockwell
  • Alloy steel powder coated ring gear
  • Quality sealed radial ball bearings
  • Stainless steel output shaft
  • Hardened precision gearing throughout
  • Precision clamp on pinion with four clamping screws to eliminate slippage
eliminator series gearheads

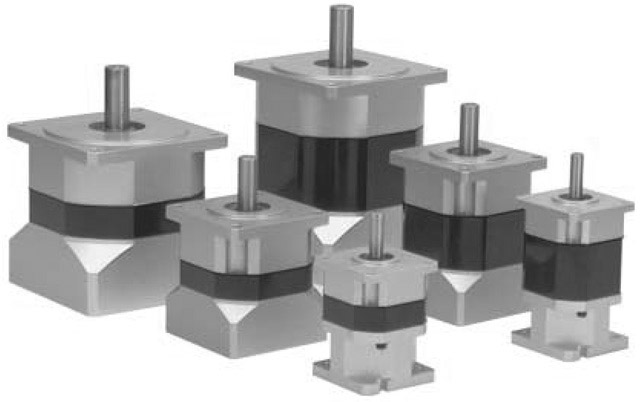

S-Series Planetary Gearheads

The "S" Series (SP) is Carson's most economical line of planetary gearheads designed for light duty applications. Made in sizes 17, 23 and 34 with standard ratios from 4:1 to 100:1. We are capable of producing ratios up to 10,000:1.

  • Dynamic radial shaft seal at the input and output
  • Enclosure rating: IP54
  • Operating temperature range: -20°F to 250°F
  • Aluminum hard anodized rear & front brackets with a surface hardness of 60 rockwell
  • Alloy steel powder coated ring gear
  • Quality sealed radial ball bearings
  • Stainless steel output shaft
  • Hardened precision gearing throughout
  • Precision clamp on pinion with four clamping screws to eliminate slippage
s-series gearheads

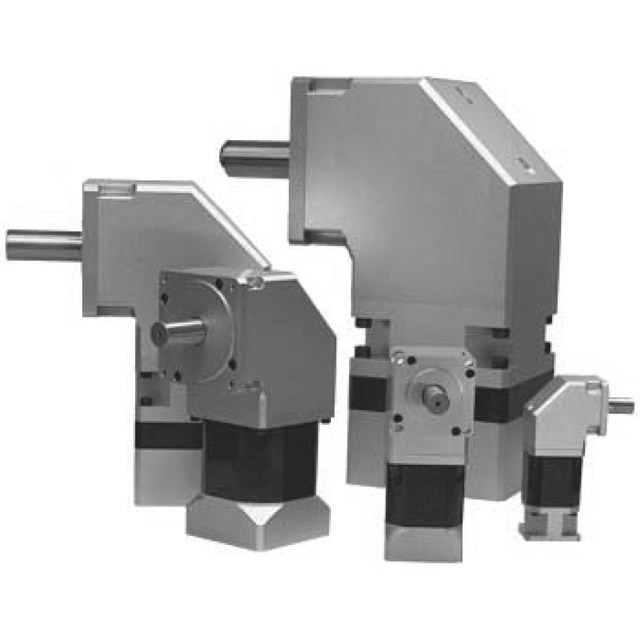

Right Angle Series Planetary Gearheads

Carson offers two lines of right angle planetary gearheads, the Right Angle Eliminator (RE) and the Right Angle Precision (RP). The Right Angle Eliminator line is offered in sizes 17, 23 and 34. The Right Angle Precision line is offered in sizes 17, 23, 34, 42 and 56. Standard ratios from 3:1 to 100:1. Capable of producing ratios up to 10,000:1.

  • Enclosure rating: IP65
  • Operating temperature range: -20°F to 250°F
  • Hardened steel spiral miter gears
right angle series gearheads

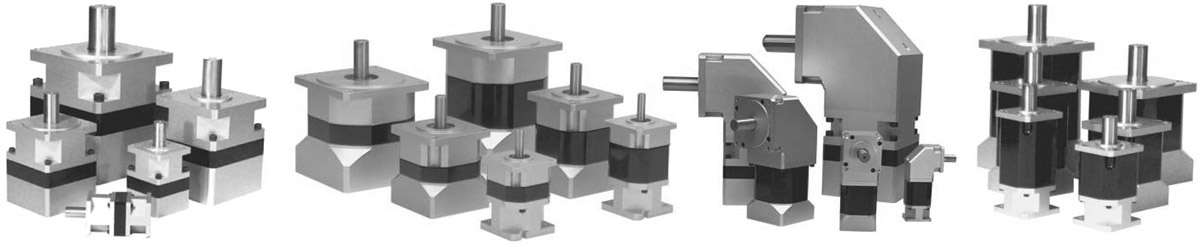

Custom Gearhead Designs

custom gearheads

From slight modifications in existing designs to complete custom gearheads built-to-suit, Carson can help you engineer and develop the planetary gearhead your project requires. Contact us today to discuss your custom gearhead needs
