Motors | Amplifiers

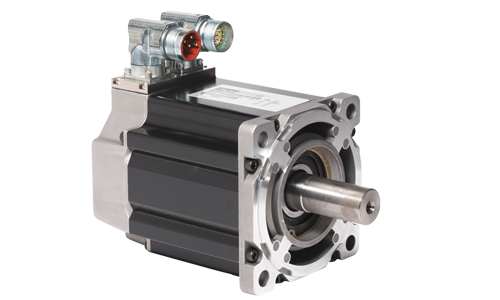

Parker MPP/MPJ Series Motors

• Sizes 92, 100, 115, 142, 190 and 270mm
• 12 to 1295 in-lbs continuous torque
• High torque density packaging
• Brushless Construction
• High performance Neodymium magnets
• Thermistor Protection

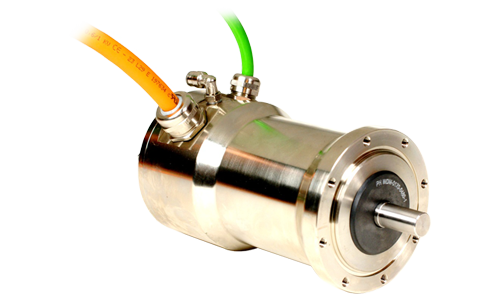

Parker MPW Servo Motor

• 10 models covering three frame sizes
• Sealed to IP69K for 1200 psi washdown requirements
• Potted stator design for improved thermal efficiency
• 35 to 227 in-lbs continuous torque (230 and 460VAC supply)
• Options include high resolution encoders, resolvers, and 24 V brake
• Cable options available to plug and play with competitor drives

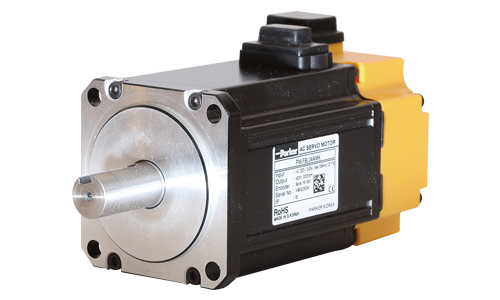

Parker P-Series Servo Motor

• 40, 60, 80 mm frame sizes
• 0.2 to 3 Nm (2 to 28 in-lb) continuous stall torque
• 0.5 to 10 Nm (4 to 85 in-lb) peak torque
• Allowable load inertia up to 30 x rotor
• BiSS-C absolute feedback, up to 524288ppr
• Performance matched
• 3000 rpm rated, 5000 rpm max speed
• Low-profile cable connections

Parker offers a wide variety of motors to meet the needs of many applications. Motor technologies that provide high power density, or better inertia matching. Motors that provide rapid acceleration or zero cogging. And still others offer the most competitive solution for high volume OEM opportunities. All are high performance brushless servo motors offering a wide range of power starting at 50 watts and going all the way up to 22 KW. Feedback options such as incremental and absolute encoders, resolvers and fail safe brakes are offered across the product lines.

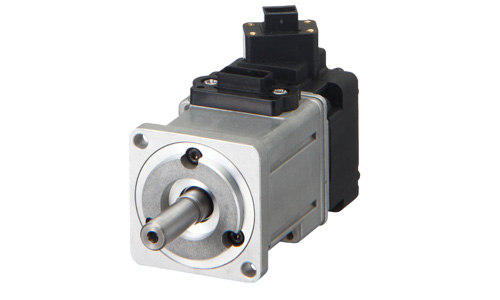

Omron G5 Servo Motor

• Sizes from 50W to 15 kW, rated speeds of 1000 rpm, 1500 rpm, 2000 rpm and 3000 rpm
• Peak torque 300% of continuous torque during 3 seconds or more depending on model
• High accuracy provided by a 20 bit resolution encoder, ABS encoder as an option
• IP67 protection in all motor models

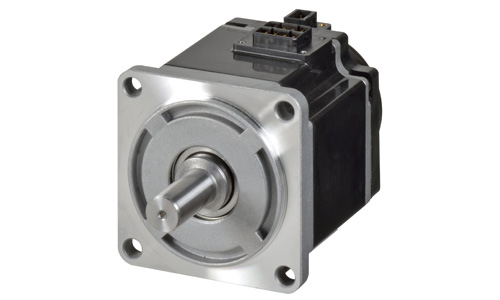

Omron 1S Servo Motor

• 23-bit resolution encoder
• Compact and small motor size
• Multi-turn encoder design without mechanics: 16-bit, 65536 turns
• Battery-free absolute multi-turn encoder
• Pre-assembled motor cables
• Designed for easy EMC compliance

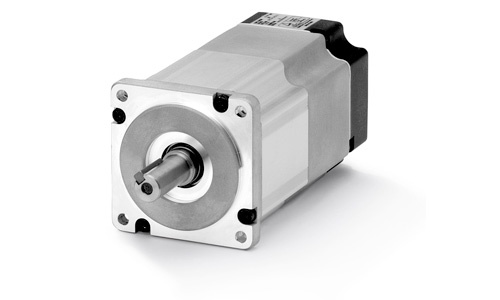

Omron R7 (SmartStep 2)

• Sizes from 50 W to 1.5 kW, rated speed 3,000 rpm
• Peak torque 300% of continuous torque during 3 seconds or more depending on model
• Servomotors supported by SmartStep 2, G-Series and Accurax G5 servo drives
• Encoder accuracy of 10000 steps/rev as standard and 17 bits-INC/ABS as optional

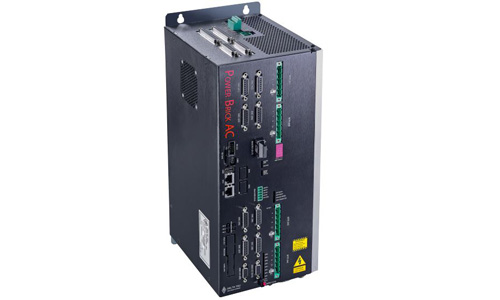

Delta Tau - Power Brick AC

Power Brick AC is the newest product in Delta Tau’s lineup of intelligent amplifiers, offering the flexible and powerful Power PMAC, which is capable of controlling up to 256 axes simultaneously with built-in or customized servo control filters and trajectory generation algorithms, along with 4, 6, or 8 axes of local amplifiers, all in one easily-wired panel mount form factor.

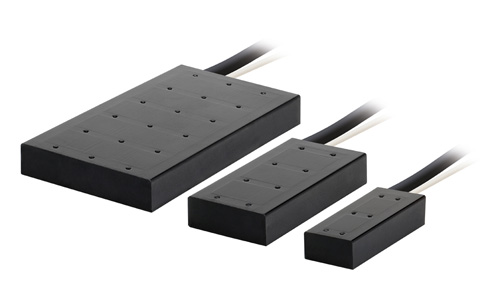

Omron Linear FW

• High dynamic and precise positioning
• Compact and flat design iron-core motors
• Weight-optimized magnet track
• Optional digital hall-sensor and connectors
• Temperature sensors included

Omron 1S

• High dynamic and precise positioning
• Excellent force-to-weight ratio
• Weight-optimized magnet track
• Optional digital hall-sensor and connectors
• Temperature sensors included

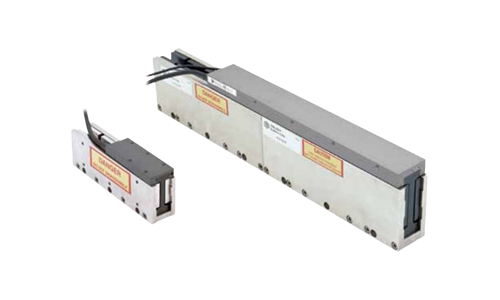

Parker I-Force

• 5 different cross sections (110, 210, 310, 410, and ML50) with up to 8 poles
• Compact size with high force density and superior heat removal
• Air and water cooling

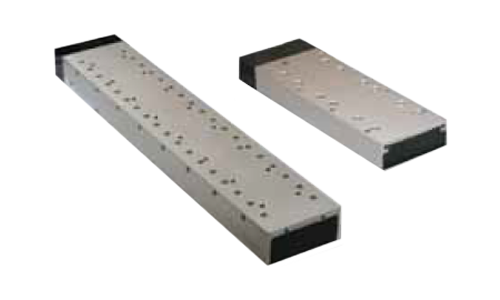

Parker RIPPED Ironcore

• Patented anti-cog technology for extremely smooth motion
• Single magnet row for high performance at an economical price
• Ultra high-flex cable standard
