Aysril Vibration Feeders
Asyril's award-winning series of Asycube flexible feeders offers high performance part feeding, pre-orientation and optimal surface distribution of bulk parts and components.
Asyril Asycube
Asyril develops, produces and markets high performance flexible feeding systems for parts and components. Their innovative 3-axis vibration technology can handle bulk parts of any geometry and allows for extremely gentle part feeding.
- Compatible with all part geometries
- Minimum production changeover times
- Extremely gentle part handling
- Advanced reliability and durability
- Precise part detection with adjustable backlight
- Systematic orientation
- Easy configuration

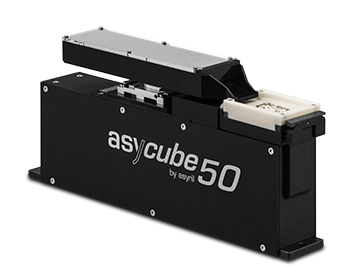

Asycube 50
Ideal flexible feeder for small components from 0.1 to 5 mm for flat and cube-like parts, and up to 10 mm for long parts (e.g. pins and needles)
Dimensions
Size of vibratory platform
- 45 x 34 mm; ~50 mm diagonal
- 1.3 x 1.8 in; ~2 in diagonal
Feeder size
Feeder size (L x W x H)
- 293 x 46 x 138 mm
- 11.5 x 1.8 x 5.4 in

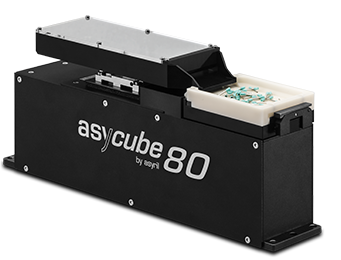

Asycube 80
Ideal flexible feeder for small components from 3 to 10 mm for flat and cube-like parts, and up to 15 mm for long parts (e.g. pins and needles)
Dimensions
Size of vibratory platform
- 67 x 52 mm; ~80 mm diagonal
- 2.6 x 2.1 in; ~3.1 in diagonal
Feeder size
Feeder size (L x W x H)
- 320 x 61 x 138 mm
- 12.6 x 2.4 x 5.4 in

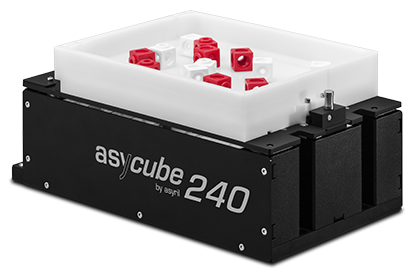

Asycube 240
Ideal flexible feeder for components from 5 to 40 mm for flat and cube-like parts, and up to 50 mm for long parts (e.g. pins and needles)
Dimensions
Size of vibratory platform
- 95 x 150 mm; ~250 mm diagonal
- 7.6 x 5.9 in; ~10 in diagonal
Feeder size
Feeder size (L x W x H)
- 300 x 171 x 132 mm
- 11.8 x 6.7 x 5.2 in

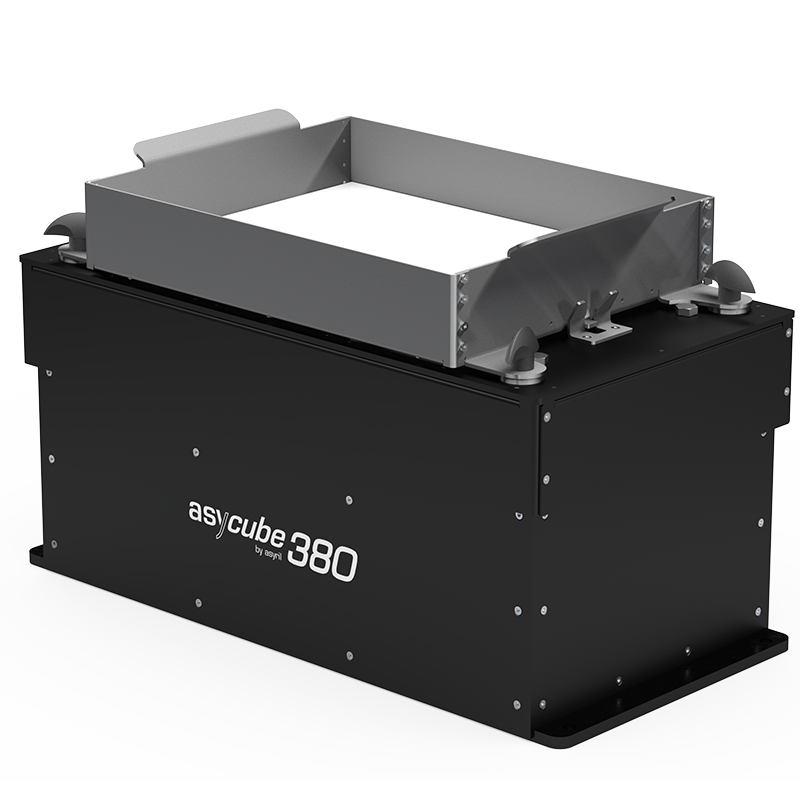

Asycube 380
Ideal flexible feeder for components from 15 to 60 mm
Dimensions
Size of vibratory platform
- 254 x 325 mm; ~380 mm diagonal
- 10 x 12.8 in; ~14.96 in diagonal
Feeder size
Feeder size (L x W x H)
- 499 x 257 x 307 mm
- 19.6 x 10.1 x 12.1 in

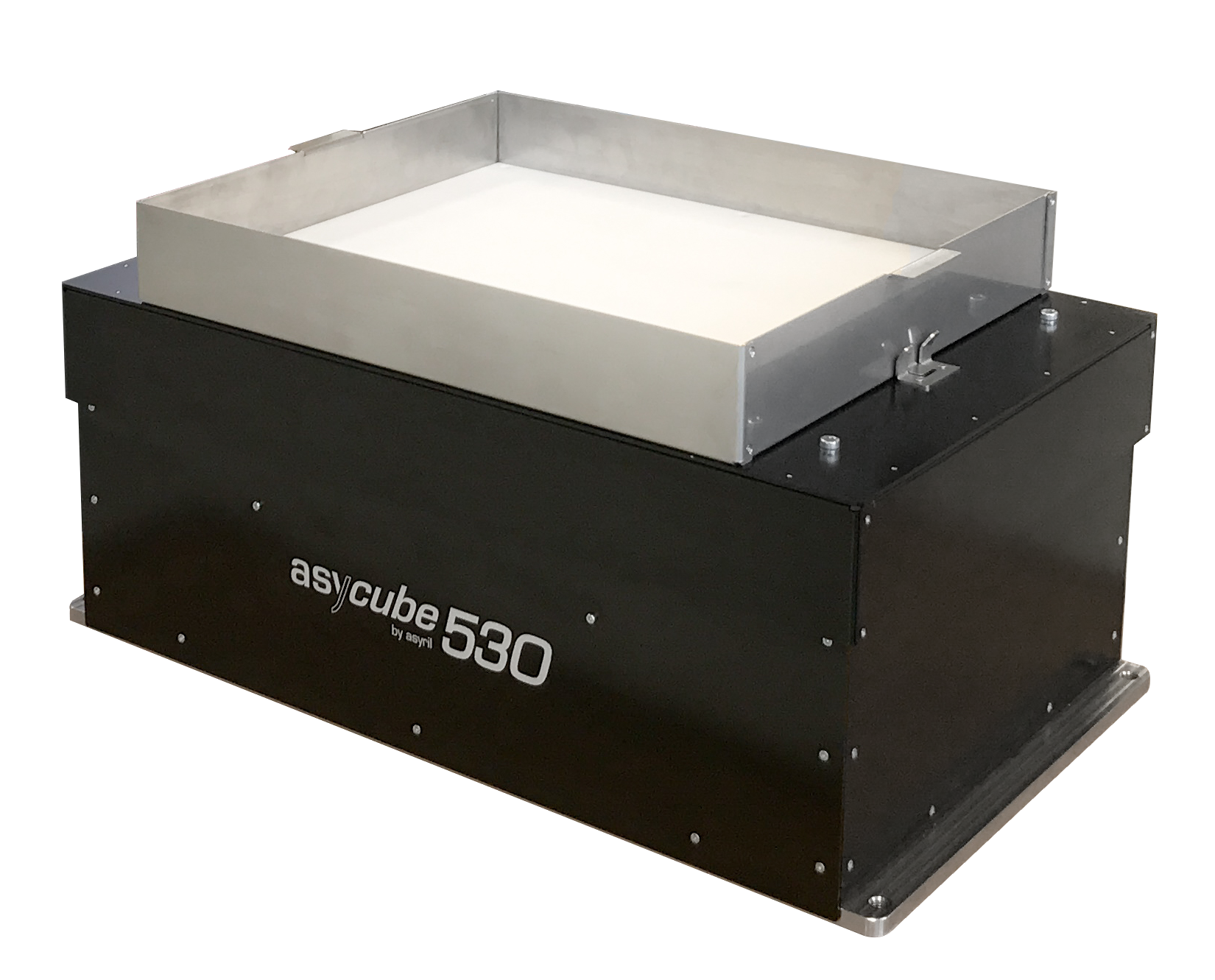

Asycube 530
Ideal flexible feeder for components from 30 to 150 mm for flat and cube-like parts, and up to 50 mm for long parts (e.g. pins and needles)
Dimensions
Size of vibratory platform
- 427 x 371 mm; ~530 mm diagonal
- 16.8 x 14.6 in; ~20.9 in diagonal
Feeder size
Feeder size (L x W x H)
- 600 x 372 x 320 mm
- 23.7 x 14.7 x 12.6 in
