Aysril Eye+
EYE+ is the intelligence between Asycube and robot. Control the hopper, Asycube, camera and the robot from the EYE+ Studio, a web based interface. EYE+ optimizes the performance of your Asycube with integrated Artificial Intelligence based vision on a powerful controller.
Vision Control System

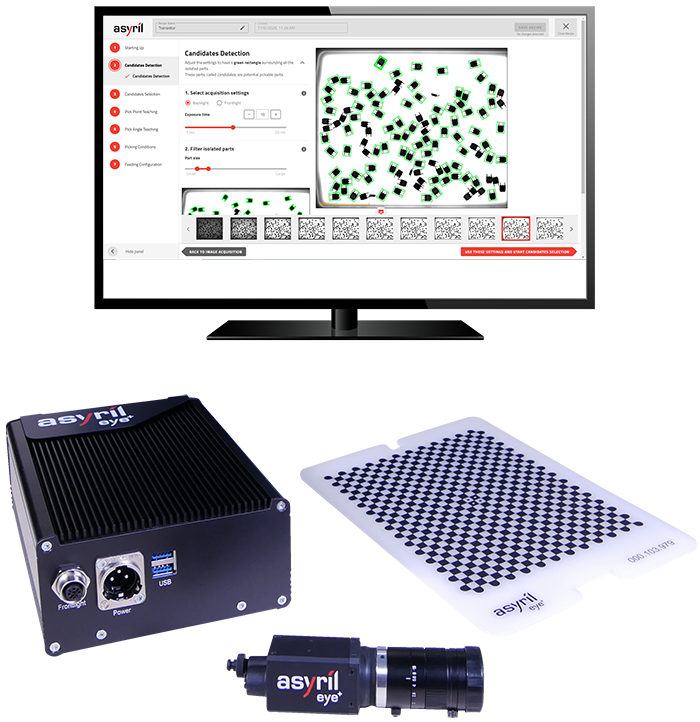

EYE+ consists of a compact controller, a high-resolution camera and a calibration plate.
This plug and play system running on the easy to use EYE+ Studio web based interface that requires no in-depth knowledge of machine vision to run your flexible pick and place application.
EYE+ Studio also makes it easy to configure the vision, perform hand-eye calibration, change recipes and program new parts.
Asyril Eye+ Configuration
Using the configuration wizard, EYE+ Studio set up in 3 easy steps:
- Vision configuration
- Create a new recipe
- Hand-eye calibration
During production, EYE+ controls all the different components of the application (Asycube, hopper, vision and robot).
- Switch on the hopper to feed the Asycube
- Manage the right vibrations of Asycube
- Detect correctly oriented parts
- Pick parts from platform by robot
Aysril Eye+ System Features
- Easy to use: No previous experience of machine vision required to setup and use EYE+ resulting in faster installation and lower setup costs.
- Intuitive recipe creation and configuration: User friendly interface, with step-by-step instructions and explanations, makes the software easy to follow. Have a complete new system with calibrated robot and vision setup within minutes. New recipes can be learnt in a fraction of the time compared to conventional models.
- Plug and play: Designed to easily integrate with any size of Asycube and any industrial robot for hassle free set-up. Simple direct connection and pre defined vision parameters with help tips and graphics mean installation, mounting and setup can be quickly performed without any prior experience.
- All included: Simply accessible via a web browser, no software download or additional licensing required. No 3rd party software or hardware required for a complete system.
- Attractive: Highly competitive system costs compared to traditional solutions.
- Compatible with any PLC & industrial robot brand: Command prompts are sent through TCP/IP so EYE+ is compatible with any robot brand giving pick point location for any part.
Asyril Eye+ Studio
The Aysril Eye+ Studio enables end-users to configure their application recipe quickly using the intuitive user interface.

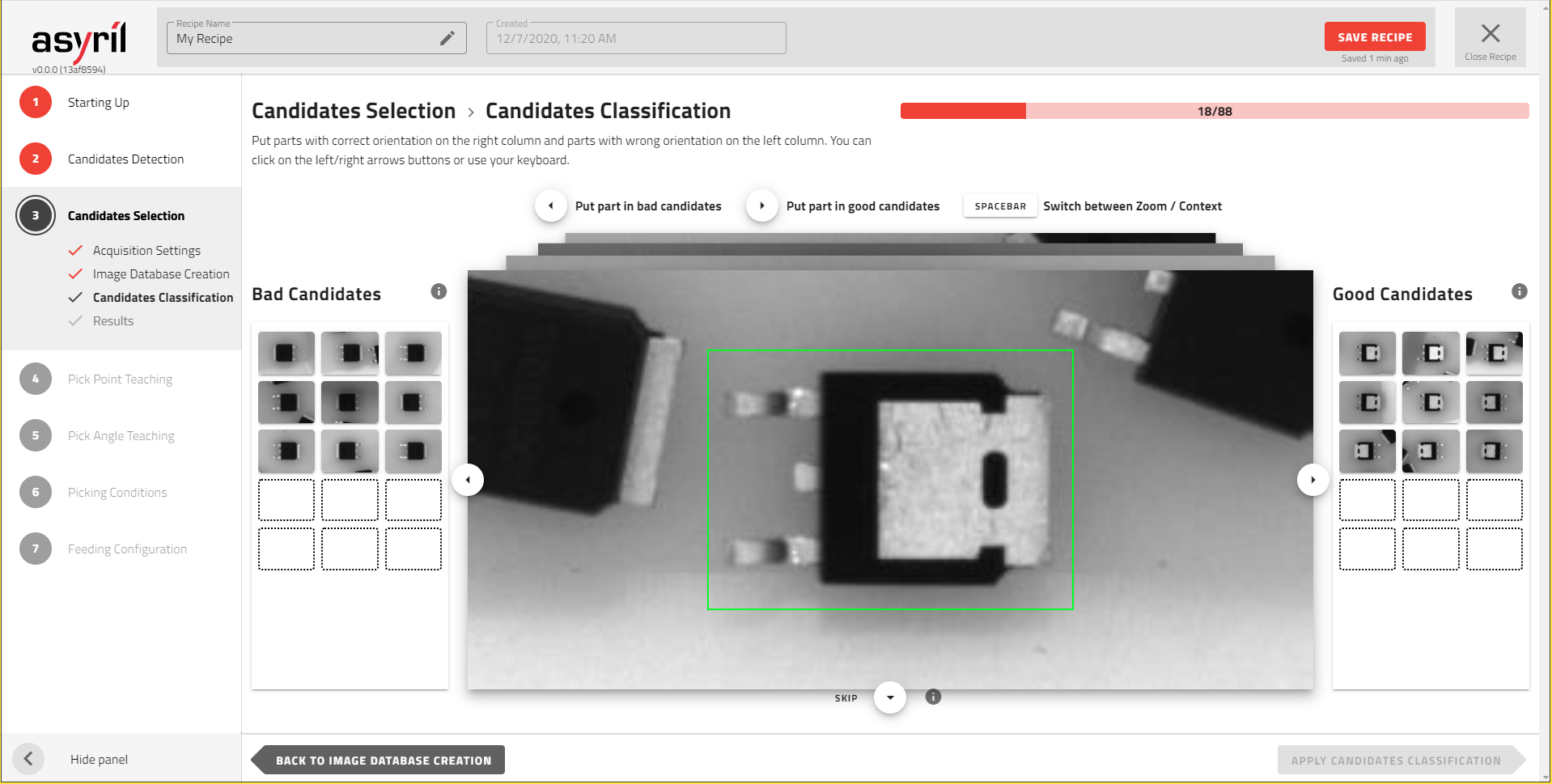

Candidates Selection
Swipe left or right, good and bad parts.

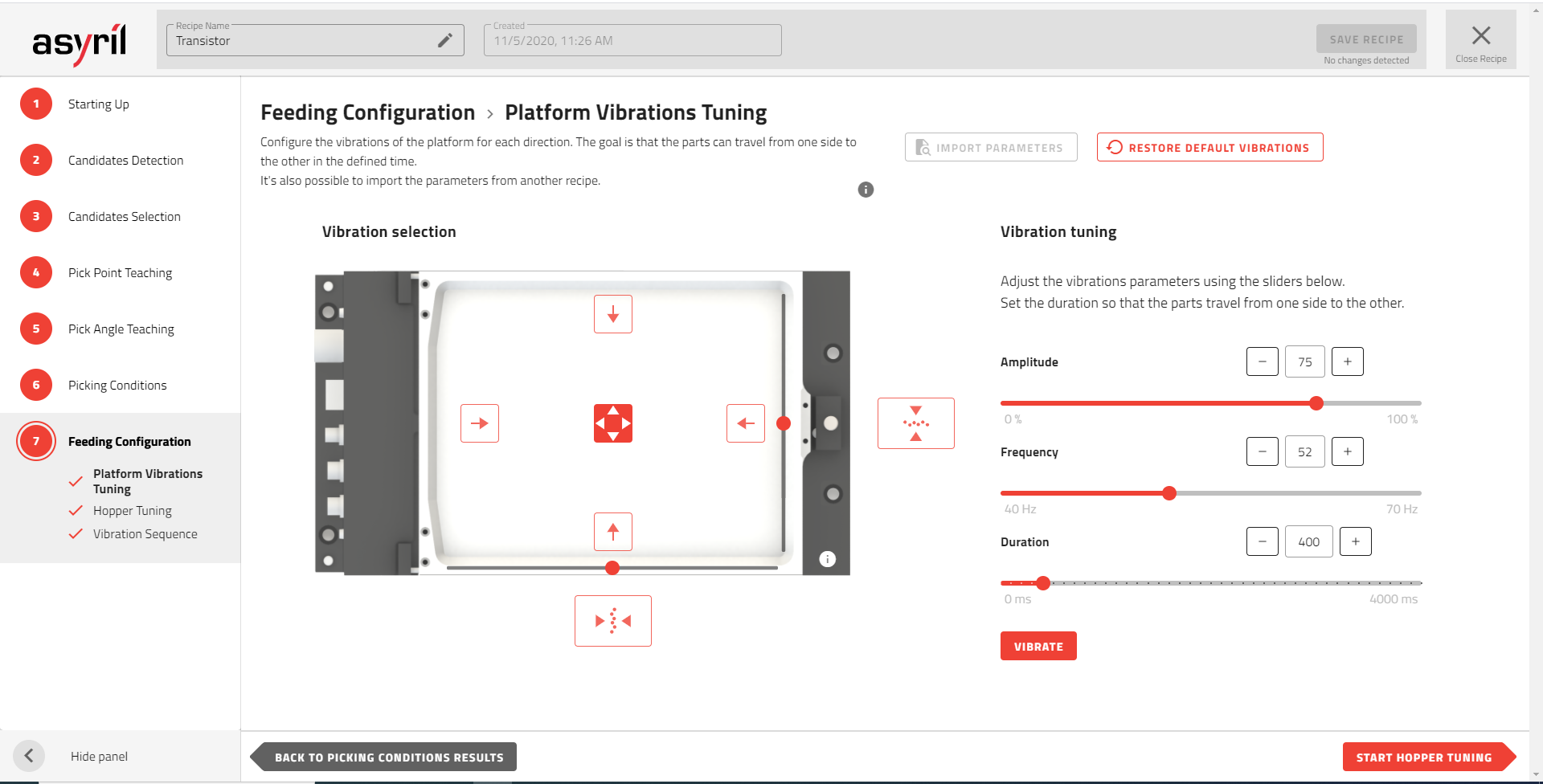

Feeding Configuration
Complete control of your Asycube.

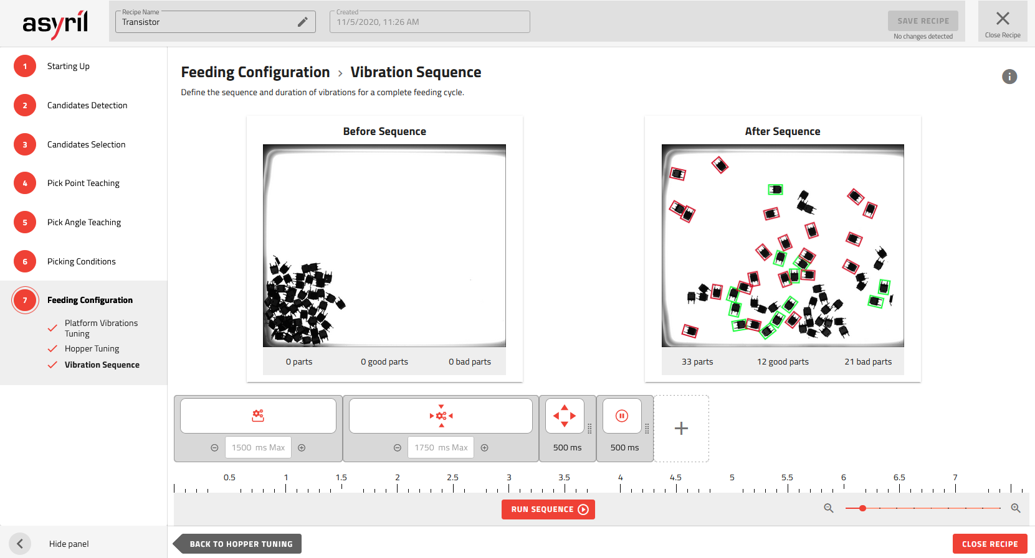

Vibration Sequence
Easily define the sequence to spread parts.
