Parker Machine Automation Controllers
Parker motion controllers are powerful designs that have the processing power to coordinate multiple axes of motion. Parker controllers have advanced features built in, such as kinematics transformation for the control of robots and other non-linear functions.
Parker ACR7000
Multi-Axis Servo & Stepper System
A family of integrated, multi-axis motion controllers, the ACR7000 continues the success of the 9000 and IPA, with new, streamlined low power hardware solutions.
- 800MHz ARM(R) Cortex(R)-A8 processor
- Ethernet communications supports PC and I/O communications
- High performance servo and stepper drive variants
- 24-48VDC input power
- Utilizes proven, powerful AcroBasic motion control
- Servo drives rated to 8A continuous, stepper drives to 4A
ACR Series Programmable Automation Controllers
The ACR control platform supports a wide variety of motion control applications, providing the machine designer an unprecedented level of fl exibility. Everything from single-axis point-to-point motion through multi-tasking programs controlling high performance multi-axis circular interpolation is available within the ACR platform.
- Multitasking of up to 24 simultaneous programs
- Multiple coordinate systems
- Interpolation of up to eight axes in any combination
- On-the-fl y motion parameter changes
ACR 9000 Motion Controller
- Up to 8 axes of servo or stepper control
- Advanced multitasking of up to 24 simultaneous programs
- Interpolation of 8 axes in any combination
- 10/100 Base-T Ethernet
- USB 2.0
- EtherNet/IP compatibility
- Absolute Encoder support via SSI
- ACRView Software Development Kit
- 24 VDC optically isolated onboard inputs and outputs
- CANopen expansion I/O
- 20/240 VAC power input
- CE (EMC & LVD), UL and cUL Recognized

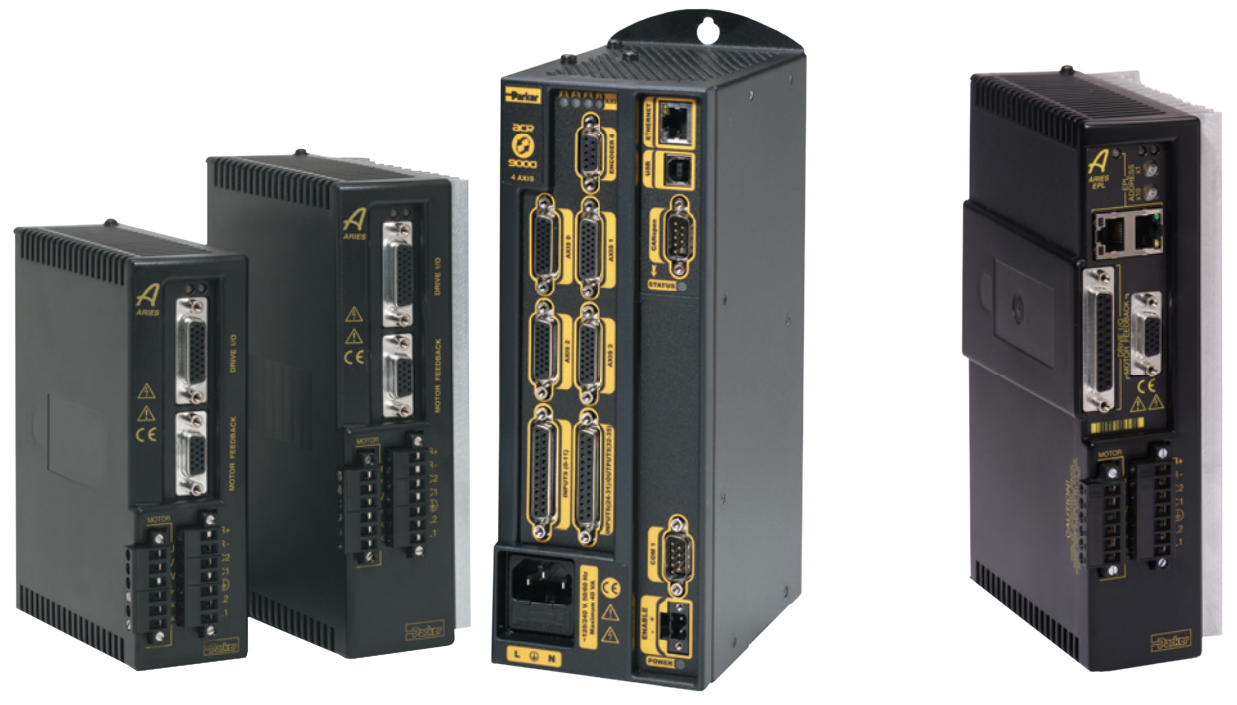

Aries Digital Servo Drive
- DriveTalkTM – ACR9000 controller can access all drive parameters
- Multiple feedback options - Smart encoder, Quadrature encoder, Heidenhain EnDat absolute encoder, and resolver feedback supported
- From 1 to 16A RMS continuous currents
- 120/240 VAC
- CE (EMC & LVD), UL Recognized
Aries Controller Single-Axis Servo Drive/Controller
- 7 onboard inputs (4 standard, 3 high speed), 4 outputs
- Advanced Multitasking of up to 16 simultaneous programs
- Integrated 2 port Ethernet hub
- ACRView Software Development Kit
- Rotary or linear servo motor control
- 3, 4.5 and 6.3 A RMS continuous current
- 120/240 VAC power input
- Multiple feedback options – Smart encoder, quadrature encoder, Heidenhain EnDat absolute encoder
- Auto-tuning
- CE (EMC & LVD), UL Recognized
