Parker Cartesian Systems
For applications that require cost-effective, high-performance systems and quick delivery, the XRS Series of “standard” Cartesian robot modules delivers the ideal solution.
XRS Cartesian Robots
Parker XRS Series “standard” Cartesian robot modules are the ideal solution for cost effective automation in life sciences, semiconductor, electronics, automated assembly, dispensing, and many other applications. Standard XRS Systems are pre-engineered to optimize work-space, simplify selection, shorten delivery and lower costs. These systems are offered in three size platforms (Small; Medium; Large) and 124 standard variations.
XRS Cartesian Robot Scalability
With 3 size platforms and 124 standard systems you can find a standard solution for your application.
XRS Cartesian Robot Technology
A unique mix of linear servo motor and ballscrew drive technology provides optimized dynamic performance for today’s demanding automation applications.
XRS Cartesian Robot Reliability
XRS Systems are built from Parker’s XR/LXR linear positioners, time tested and proven in thousands of applications worldwide.

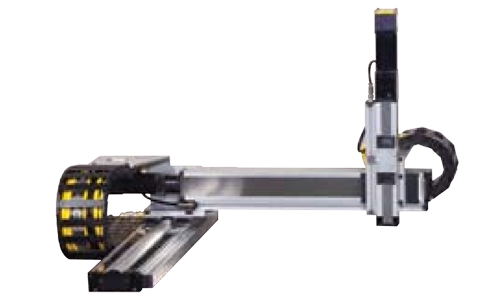

Cartesian Robot Module- Small
- X-Y work area to: 600mm X 300 mm
- Maximum load: 5 kg
- Innovative strip seal design provides IP30 protection
- Pre-installed air, power and signal lines routed to moving payload for convenient hook-up and long life operation.
- System cable management features “high-flex” shielded cables with quick disconnect convenience.
- Precision dowel holes allows repeatable mounting of tooling to robot and robot module into machine.
- All axes are aligned and pinned orthogonal so that axes may be removed and re-attached with factory precision.

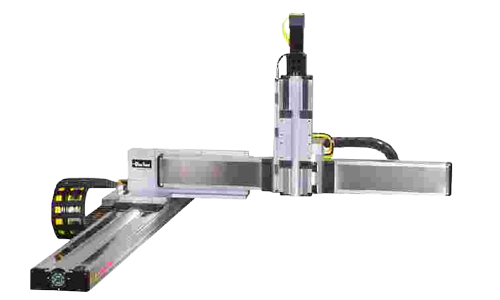

Cartesian Robot Module- Medium
- X-Y work areas to: 850mm X 600 mm
- Maximum load: 12 kg
- Innovative strip seal design provides IP30 protection
- Pre-installed air, power and signal lines routed to moving payload for convenient hook-up and long life operation.
- System cable management features “high-flex” shielded cables with quick disconnect convenience.
- Precision dowel holes allows repeatable mounting of tooling to robot and robot module into machine.
- All axes are aligned and pinned orthogonal so that axes may be removed and re-attached with factory precision.
- Clean

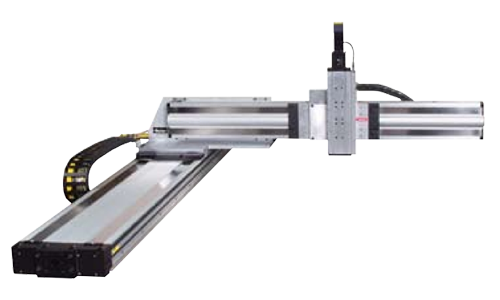

Cartesian Robot Module- Large
- X-Y work area to: 1000mm X 1000 mm
- Maximum load: 25 kg
- Innovative strip seal design provides IP30 protection
- Pre-installed air, power and signal lines routed to moving payload for convenient hook-up and long life operation.
- System cable management features “high-flex” shielded cables with quick disconnect convenience.
- Precision dowel holes allows repeatable mounting of tooling to robot and robot module into machine.
- All axes are aligned and pinned orthogonal so that axes may be removed and re-attached with factory precision.
