Aysril SmartSight

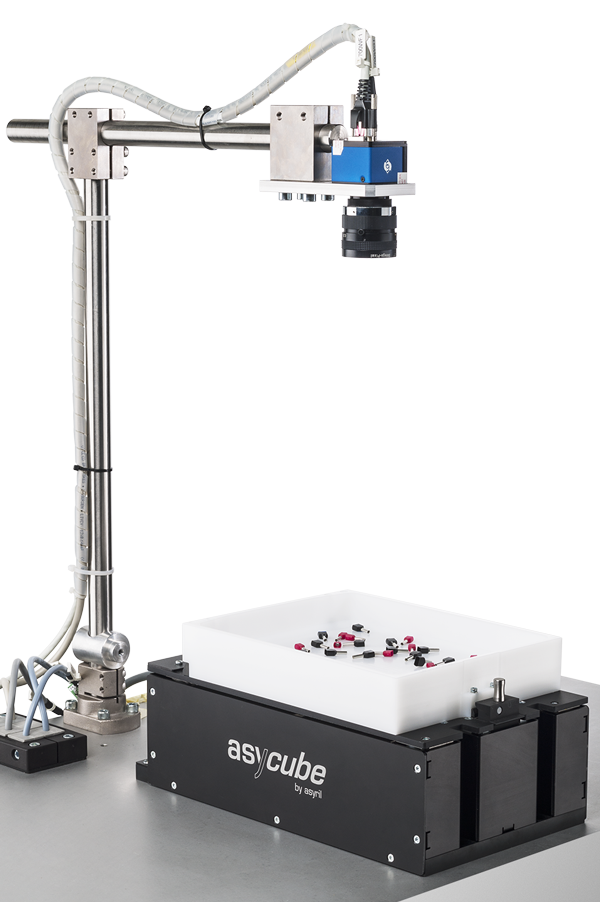

SmartSight describes Asyril’s intelligent optical part detection and image processing system, ensuring straightforward integration of any Asycube vibrating platform with any industrial robot brand.
Visual part detection system for Asycube feeders
- Fast integration: direct output of part coordinates to the robot, fully automatic control of feeder vibrations and part detection
- Quick setup and reduced development times: get started immediately on your application
- Attractive, highly competitive system costs as up to 4 cameras and Asycube feeders can be controlled with a single SmartSight control unit
- Software based on market standard: proven industrial vision library (PatMax / COGNEX)
- Intuitive teaching and configuration with Asyril’s control software
- Compatible with any Asycube vibrating platform
- Compatible with any industrial controller brands (e.g. Beckhoff, Rockwell / Allen Bradley, Siemens, Fanuc, Denso, Stäubli, Epson)

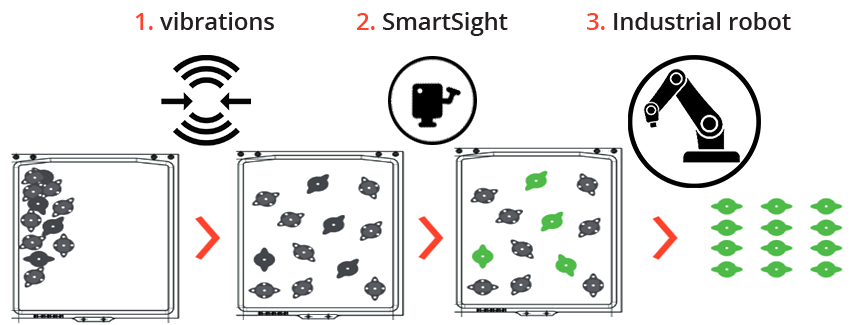

How It Works
- Homogeneous separation and orientation of parts
- Detection of correctly oriented parts by the SmartSight system
- Part pick from platform and assembly by robot
SmartSight comprises Asyril’s powerful visual part detection software, an industrial control PC as well as an optimally configured vision kit including camera objective and all necessary cabling, SmartSight makes the implementation of high performance flexible feeding systems as simple as setting up conventional feeders.
Capable of controlling up to 4 cameras and feeders, SmartSight autonomously controls the part movements, ensuring optimal part separation and distribution on the platform. The location of the parts to be picked is provided to the robot via Ethernet. The system can be easily programmed thanks to an intuitive user interface.
General Features
- Compatible with all component geometries
- Detect component position and orientation (X, Y, Rz, pitch-and-toss)
- Simple recipe changeover and new parts programming
- Integrated calibration procedure
- Power supply : 24 V
- Communication : TCP / IP
Options
- Connect and control up to 4 Asycube feeders & cameras with a single control unit
- Alternative camera configurations (control part presence, position in gripper, deposition)
- Camera: standard resolution (1.4 Mpx) / high resolution (5 Mpx)
- Coaxial frontlight (backlight integrated in Asycube feeding platform)
- Calibration plates for optics and robot
