Animatics Actuators

Animatics offers actuators in a variety sizes that ar both belt and screw driven. All actuators come with an Animatics SmartMotor attached.

Animatics HLD Actuators

The Harmonic Linear Drive (HLD) is an innovative linear belt drive solution providing high accuracy and low cost without the need for a gearhead or brake! Instead of using a fixed belt to move the load, the HLD uses a recirculating belt, folded back upon itself and routed over subtly different diameter pulleys yielding gear reduction by way of the Harmonic Drive Principle, without the cost or backlash of a separate gearhead.

  • No Gear Box
  • No Motor Adapter
  • Nearly Zero Backlash (30µm Bi-directional Repeatability)
  • No brake required. Perfect for vertical gravity load or constant load applications
  • Built-in Fully Programmable Motion Controller and Amplifier
  • No Control Cabinet Required

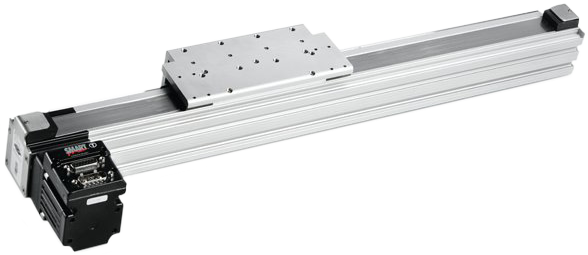

HLD Actuator

animatics product catalog

For a detailed breakdown of the Animatics product line download the latest catalog that has all the specs needed to size the right product for your appliation.

Actuator

L70

  • Open frame ballscrew based actuator
  • Single internal rail for maximum straightness
  • Available strokes 50-600mm in 50mm steps
  • Leads of 5mm/rev and 10mm/rev
Actuator

XL100

  • Semi-open frame ballscrew based actuator
  • Dual internal rails for improved straightness and loading capabilities
  • Available strokes 50-600mm in 50mm steps
  • Leads of 5mm/rev and 10mm/rev
Actuator

VLST45

  • Closed frame ballscrew actuator
  • Strokes 50-500mm in 50mm steps
  • Leads of 6mm/rev and 12mm/rev
Actuator

VLST60

  • Closed frame ballscrew actuator
  • Strokes 50-700mm in 50mm steps
  • Leads of 6mm/rev and 12mm/rev
Actuator

VLCT35

  • Strokes of 50-150mm in 50mm steps
  • Available with Pulley Offset
Actuator

L70

  • Strokes of 50-200mm in 50mm steps
  • Available with Pulley Offse
