Laser Light Towers
ONExia’s Laser Light Towers make positioning a laser projector fast and simple. Built to various heights the towers give the user the ability to move the projection system in ways that standard tripod systems cannot accomplish.
Single Axis Light Tower
- 6-20 ft. Head Height at Maximum Extension
- No Horizontal Travel - Fixed Beam Supports One Laser Projector
- No Motorized Head Rotation - Laser Projectors can be Manually Rotated
- Head Contains 2 in. Diameter by 24 in. Long Shaft for Mounting Laser
- Maximum 60 lb. Load
- Motorized Control of Vertical Axis
- ACME Screw Eliminates Back-Drive During Power Loss
- Heavy Duty Locking Casters
- Provisions & Swing Arm for Mounting Computer
- Cables to the Top Carriage

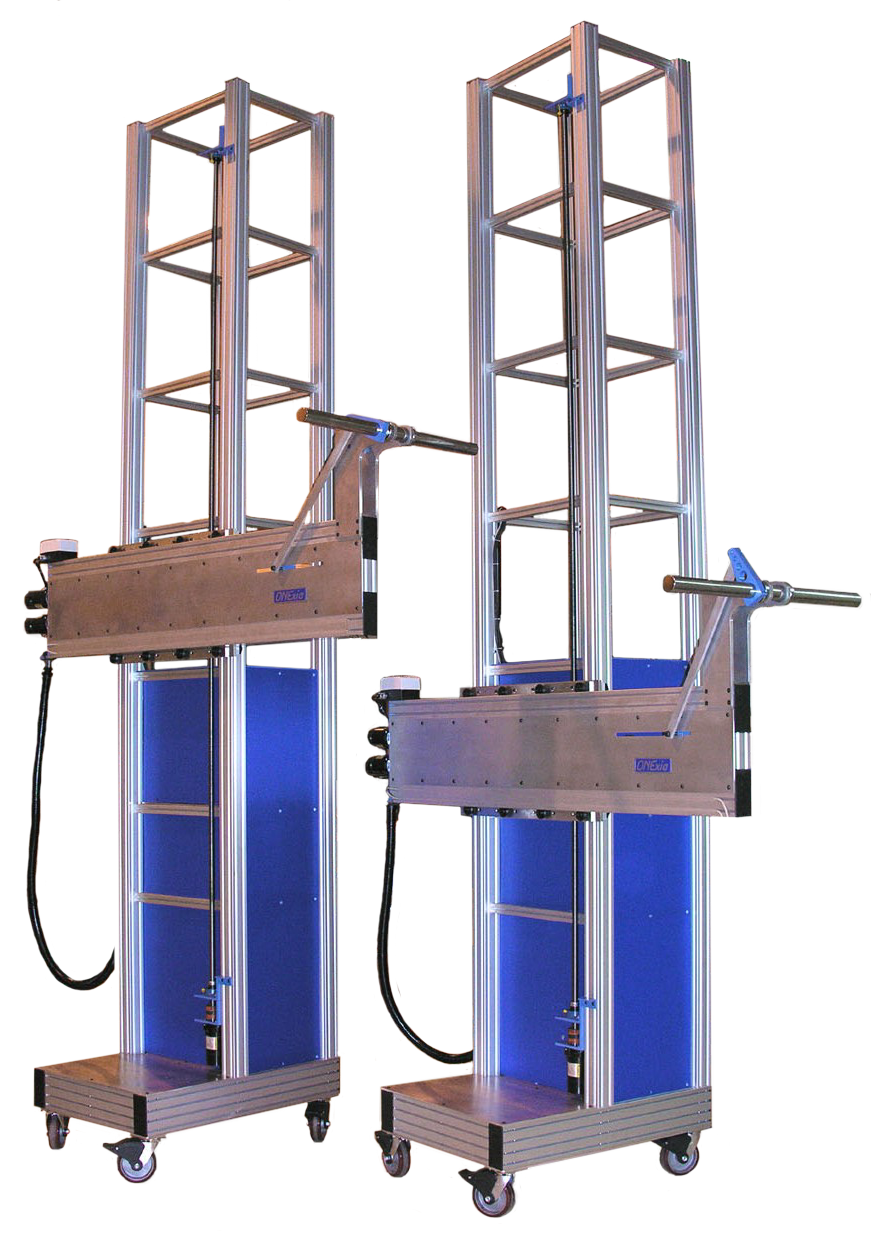

Three Axis Light Tower
- 6-20 ft. Head Height at Maximum Extension
- 40 in. Horizontal Travel
- 105 Degree Head Rotation
- Head Contains a 2 in. Diameter by 24 in. Long Shaft for Mounting Laser
- Maximum 60 lb. Load
- Motorized Jog Control of All Axes
- ACME Screw Eliminates Back-Drive During Power Loss
- Ballast in Base for Stability
- Heavy Duty Locking Casters
- Provisions & Swing Arm for Mounting Computer
- Cables to the Top Carriage

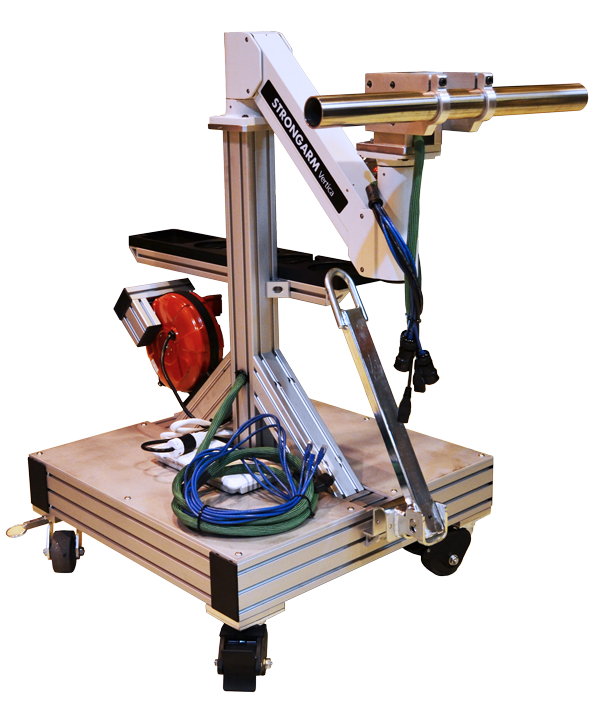

Compact Laser Cart
Designed for working in confined locations the Compact Laser Cart is a mobile, manual positioning cart for laser templating.
- Manual Height & Rotary Position Adjustment
- Mobile, Low Profile
- 13” Vertical Articulation
- Machine Top Mount
- Counterbalance up to 100 lbs.
- Arm Mounted Vertical Lock Trigger Release
